Oil-Grooving

Manufactured and uniquely configured along the internal diameters of component parts.

These patterned channels or slots encourage the flow of lubricant oil on bearing surfaces and work to decrease friction loss and dissipate heat. At SC Industries, we have specialized oil grooving equipment and precisely engineered tooling that enables us to create a wide variety of configurations. Our capabilities include figure-8, double-8, single ellipse, double ellipse, spiral, double start spirals, and more.

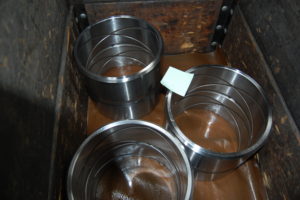

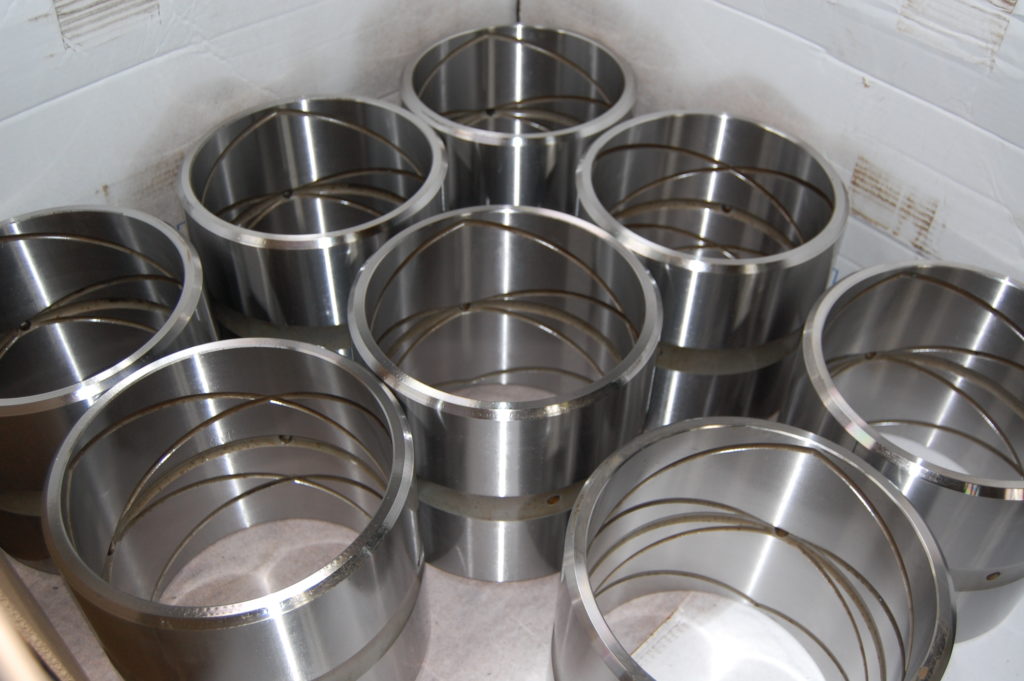

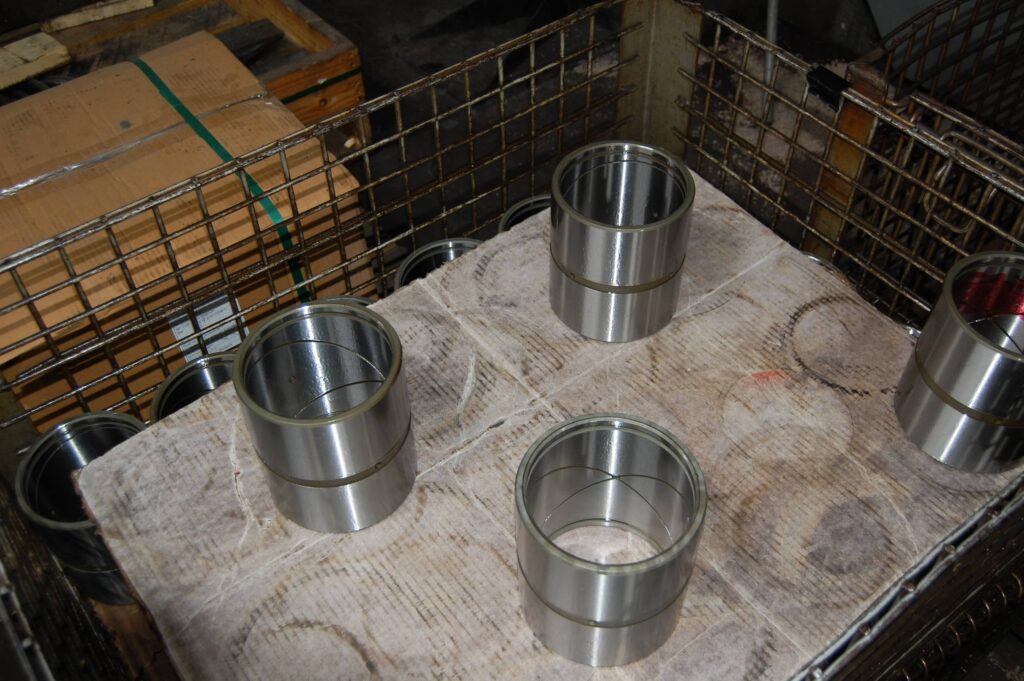

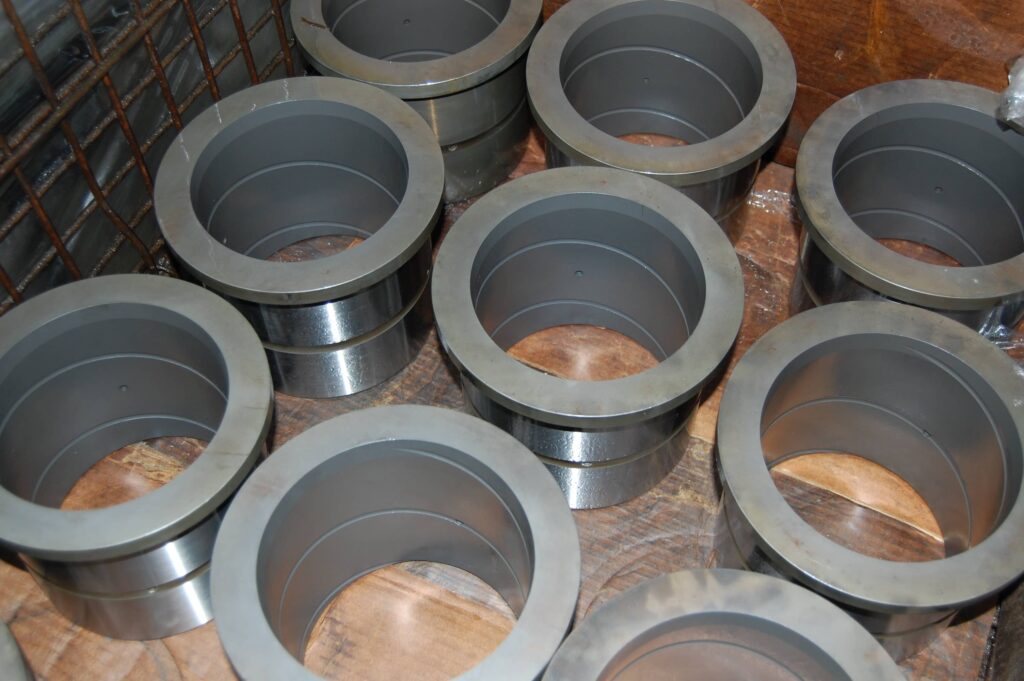

The component parts pictured here demonstrate the range of our capabilities. These components were constructed from the toughest alloy steels, and we applied specifically engineered process controls to maintain distortion-free geometries during heat treatment. Rigorous quality assurance processes ensured each pattern, depth, and geometry met the demanding specifications of our customers throughout the heavy equipment and machine building industries.

If you are interested in learning more about our specialized ability to accurately and repeatably create these dimensionally precise groove patterns and how it can improve the performance of your product, contact us today.

Oil-Grooving

Oil-Grooving

Oil-Grooving

Oil-Grooving

Oil-Grooving

Oil-Grooving

Specifications

Product Description Oil-Lubrications Grooves in Various Component Parts
Primary Capabilities Applied/Processes CNC Lathe/Oil-Groover
Secondary Capabilities Applied/Processes Precision Heat Treat
Precision Grinding
Equipment Used to Manufacture Part CNC Lathe/Oil-Groover
Expertise Precision Oil-Grooving of various multiple groove configurations per customer requests
Overall Part Dimensions Various
Material Used Various Alloy Steels-Per Customer Requirements
In process testing/inspection performed Hardness Testers
Shop Gages
Industry for Use Construction Truck/Mining
Various Machinery Builders
Volume Various Quantities
Delivery/Turnaround Time As Required per Customer Component Parts
Delivery Location Per Customer Specifications
Standards Met Customer Specifications
2D CAD Drawing
Product Name Oil-Grooved Bushings or Pins
Standards ISO 9001: 2015

We have manufactured precision hardened metal bushings for over 75 years— serving many industrial markets, including:

    • Off Highway Construction
    • Mining
    • Transportation Transit Systems
    • Hydraulics
    • Printing Presses
    • Material Handling
    • Plastic Injection Molding
    • Lamp Glass Lighting
    • Packaging
    • Machinery and Equipment
    • Machinery Rebuilders
    • Tooling
