Hardened Thin Rings

Hardened thin rings like those outlined in this project, demonstrate the precision products we produce daily.

Throughout our years in business, we developed manufacturing strategies that allow us to produce precise thin gauge parts with unique dimensional tolerances. These hardened thin rings are made of bearing-grade alloy steel. Machining operations included CNC turning, internal grinding, and OD and centerless grinding to meet project specifications. Our heat treating process hardened the thin rings consistently without any compromise to the part’s dimensional integrity.

These rings featured dimensions of 4 1/2″ x 4″ x 1/4″ and within ± 0.0005″ tolerances. Precise 8 and 16 micro finishes were also used. To learn more about this project, contact us today.

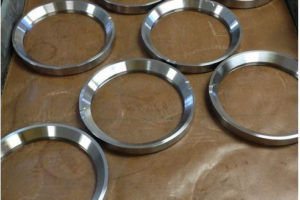

Hardened thin rings


Product Description Thin Hardened Rings
Primary Capabilities Applied/Processes CNC Turning
OD/Centerless Grinding
Internal Grinding
Secondary Capabilities Applied/Processes Precision Heat Treating
Equipment Used to Manufacture Part CNC Lathe
Internal Grinder
OD/Centerless Grinder
Double Disk Grinder
Expertise Ability to produce thin parts that are distortion prone at hardening
Overall Part Dimensions 4-1/2 x 4 x 1/4 in
Tightest Tolerances ± 0.0005 in
Material Used Alloy Bearing Steel
Material Finish 16 micro
8 micro
In process testing/inspection performed Dial Indicators
Dial Bore
Hardness testing
Surface Plate
Industry for Use Various Heavy Industries
Volume 1 to 5,000
Delivery/Turnaround Time 4 Weeks
Delivery Location Per Customer Requirements
Standards Met Customer Specifications
2D CAD Drawing

We have manufactured precision hardened metal bushings for over 75 years— serving many industrial markets, including:

    • Off Highway Construction
    • Mining
    • Transportation Transit Systems
    • Hydraulics
    • Printing Presses
    • Material Handling
    • Plastic Injection Molding
    • Lamp Glass Lighting
    • Packaging
    • Machinery and Equipment
    • Machinery Rebuilders
    • Tooling
