Key takeaways:
- Thrust bearing selection depends on three variables: axial load, application environment, and specified tolerance.
- Construction, mining, and hydraulic systems each impose distinct demands on load capacity, surface finish, and dimensional control.
- Tolerances as tight as ±0.0005″ and a defined micro-finish are the levers that determine wear life and stability.
- The costliest failures usually trace back to underestimated loads, loose tolerance calls, and skipped heat treatment, not to the bearing type itself.

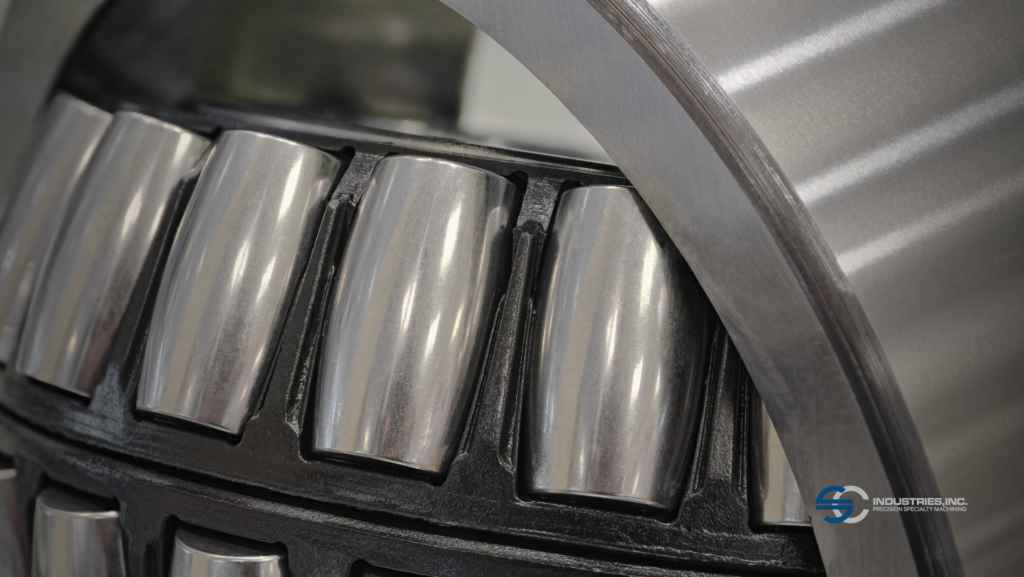

Thrust bearing selection hinges on matching three critical variables – axial load, application environment, and tolerance – to your assembly’s specific demands. This is not a catalog lookup; it is an engineering decision that directly controls wear life, stability, and failure risk.
This guide walks through the criteria that drive that decision, and the specification mistakes that quietly shorten service life. For a broader treatment of the subject, see Industrial Thrust Bearings.
How are thrust bearings used in construction equipment?
In excavators, wheel loaders, and mobile cranes, thrust bearings absorb axial forces from boom articulation, swing drives, and hydraulic linkages, maintaining precise shaft positioning under load. These applications involve frequent shock and vibration, so selecting thrust bearings for construction equipment starts with defining peak transient loads, not just steady-state conditions. Longevity depends on tight geometric tolerances, controlled micro-finishes, and hardened, ground bushings with sufficient case depth to resist brinelling and spalling. Durable surfaces preserve lubricant films, while flat, true races ensure even load distribution.
When evaluating how to select and specify a thrust bearing for heavy-duty construction applications, it is critical to consider the unique operational environment: cyclical high-impact loads, exposure to contaminants, and the need for precise axial positioning under dynamic conditions. Specifying components produced with ISO 9001:2015-certified processes, low defect rates, and metrology-driven inspections ensures each bearing meets the demanding tolerances and micro-finishes required for extended service life.
Multi-axis CNC turning centers and internal grinding capabilities are vital for achieving the concentricity and flatness that prevent premature wear and maintain performance under severe duty cycles. Always confirm that the bearing’s micro-finish matches the application’s shock and vibration profile; overlooking these factors can lead to rapid degradation and unplanned downtime.
How do you determine the right type and size of thrust bearing for a specific industrial application?
The governing variables are load capacity, shaft diameter, operating environment, and the tolerance band the assembly can accept. Addressing the question “How do I select the right industrial thrust bearing?” productively means quantifying the axial load spectrum first, then working outward to the bore, seat, and envelope constraints the surrounding structure imposes. Temperature, contamination, and lubrication regime then narrow the material and finish choices.
Dimensional discipline is decisive: what tolerances are recommended for thrust bearings in high-precision service typically resolves to bands such as ±0.0005″, held consistently across an entire run. Specifying an appropriate micro-finish and a defensible total indicator reading ensures uniform load sharing and minimal wear—a runner out of square by even a few tenths concentrates stress on a fraction of the contact area and accelerates fatigue.
Total indicator reading (T.I.R.) is the callout that governs this squareness and running truth: it is the full range a dial indicator sweeps across a rotating surface, capturing the combined effect of runout, wobble, and lack of perpendicularity between the bearing face and its axis of rotation. Because a thrust bearing exists to distribute axial force evenly across an annular contact, T.I.R. is often the single most consequential geometric requirement on the print, more so than any individual diameter. Determining an appropriate value means working backward from the load contact you need: the tighter the acceptable stress concentration, the tighter the T.I.R.
High-precision, heavily loaded service commonly calls for face T.I.R. in the range of 0.0002″ to 0.0005″, while less demanding or slower-turning assemblies may tolerate 0.001″ or more. Set the value by considering rotational speed, axial load magnitude and how evenly it must be shared, the flatness and squareness of the mating seat, and the stack-up of the surrounding assembly. There is no benefit to specifying a bearing face flatter than the housing shoulder it registers against.
Always reference T.I.R. to an explicit datum and state the feature being measured (face, bore, or outside diameter), because an unreferenced T.I.R. callout is every bit as ambiguous as an omitted tolerance. Multi-axis CNC turning for concentric features and precision grinding for face and diameter truth are what make a demanding T.I.R. repeatedly achievable. The value you specify should reflect what the chosen process can hold across the full run, not a single first-article part.
Which thrust bearing is best for mining equipment?
Mining is arguably the harshest duty a thrust bearing can face. Crushers, draglines, haul-truck spindles, and conveyor drives combine extreme axial loads with abrasive dust, moisture, and constant vibration. A high-load thrust bearing built for this service has to carry sustained force without deforming while resisting the grit that infiltrates every seal.
The advantage of hardened and ground bushings is straightforward: hardened surfaces resist abrasive wear, and precise grinding maintains contact geometry consistency, enabling the load to spread instead of concentrating. Components manufactured under an ISO 9001:2015-quality system with a documented low defect rate give operators the repeatability they need. Every replacement behaves like the last one, important when a single failure can idle an entire production line.
What are common thrust bearing design mistakes?
The recurring errors are predictable. Engineers underestimate the load envelope by designing to nominal rather than peak conditions; consequently, they specify a tolerance loosely or omit it, leaving the shop to guess. Revisiting recommended tolerances for thrust bearings during design review routinely exposes internally inconsistent callouts: an ambitious diameter tolerance paired with an undefined finish, a flatness requirement with no datum, or a T.I.R. value stated without the datum it must reference.
Neglecting micro-finish and heat treatment is equally common, and both directly govern fatigue life. Downstream, inadequate incoming inspection and poor record-keeping mask process drift until it becomes a recall. Finally, specifications that ignore what modern manufacturing can hold – multi-axis CNC turning for concentric features, centerless grinding for consistent outside diameters – either overcompensate for unnecessary precision or demand geometry the chosen process cannot repeatedly produce.
Always confirm recommended thrust bearing tolerances for your application’s duty cycle and environment, ensuring all specifications are explicit and achievable with your chosen manufacturing process. This clarity minimizes ambiguity and mitigates downstream failures or costly rework.
Which thrust bearing is best for hydraulic applications?
Hydraulic systems, pumps, motors, and swashplate assemblies require precise axial load management, low parasitic friction, and compatibility with oil-grooving patterns that route pressurized fluid across the bearing face. Figure-8 and double-8 groove configurations distribute lubricant to sustain a coherent film under fluctuating pressure, with their efficacy hinging on surrounding surface quality.
Knowing how to select and specify a thrust bearing for hydraulic applications means understanding that groove geometry, micro-finish, and dimensional tolerances must be engineered as an integrated system. For these demanding environments, tight tolerance control (often 0.0005″) and a micro-finish of 8RMS are not optional; they are the baseline for maintaining oil film stability and predictable internal leakage. Correctly specifying oil-grooving patterns, paired with a finish that neither disrupts nor starves the lubricant film, directly governs component efficiency, life, and system reliability.
When selecting and specifying a thrust bearing for hydraulic equipment, ensure groove geometry, hardness, and finish are specified in tandem and reflect both the pressure regime and the application’s contamination risk. Too rough a finish disrupts the film, too smooth and it starves; either way efficiency and stability degrade. Specify groove geometry and finish together, never in isolation.
For a detailed comparison of grooved and plain designs, see Oil-Grooved vs. Plain Thrust Washers: Does Your Application Need Grooving?.
