Key takeaways:
Oil grooves distribute lubricant across the loaded face of a thrust washer, sustaining a continuous film that prevents metal-to-metal contact under high loads and at high speeds.
Plain, ungrooved thrust washers are sufficient for low-speed, lightly loaded, or intermittent joints where a boundary film survives without active replenishment.
Groove geometry – figure-8, double-8, or spiral – must be matched to duty cycle and lubrication method rather than applied by default.
The additional machining cost of grooving is justifiable only where film stability genuinely limits component life.
Thrust washers sit at the intersection of load path and lubrication strategy. The decision to groove or leave a face plain determines how well a bearing survives high speed, heavy load, or continuous duty. Yet many engineers default to grooving without examining whether their application actually demands it. This look at Plain Thrust Bearings: Washers, Sleeves, and Custom-Machined Components is part of our broader coverage of Industrial Thrust Bearings.
Oil-Grooved vs. Plain Thrust Washers: Does Your Application Need Grooving?
An oil-grooved thrust washer carries machined channels across its bearing face, while a plain washer presents a continuous, ungrooved surface. The choice of either depends on how lubricant reaches and stays on the loaded interface.
SC Industries machines several groove patterns: figure-8, double-8, and spiral, each engineered to route oil where a converging film is hardest to sustain; you can see the oil-groove patterns we machine in production. In effect, a grooved face behaves like an oil-embedded thrust bearing: the channels hold a lubricant reservoir and feed it outward under rotation, cutting friction and shear heat while extending service life in high-load, high-wear environments.
Surface features like grooves, pockets, and undulations promote a hydrodynamic film that separates the two faces, so relative motion occurs with minimal contact and reduces both friction and wear. Where loads are modest and motion intermittent, a plain washer holds an adequate boundary film on its own, and grooving there adds cost without measurable benefit.
When do I need oil grooves on a thrust washer?
Grooves become critical wherever a stable lubrication film is difficult to maintain:
High-speed rotation, where centrifugal action strips lubricant from a smooth face faster than it can be replenished.
Heavy or shock axial loads that squeeze the film toward metal-to-metal contact.
Continuous-duty operation, where heat accumulates and lubricant viscosity drops.
In these regimes, oil-filled bearings and grooved thrust washers share one objective: holding lubricant at the interface long enough to sustain hydrodynamic separation. Engineers can tailor custom groove configurations to a specific duty cycle, using spiral patterns for progressive outward feed and double-8 layouts for bidirectional loading.
Spiral geometries are particularly effective because rotation itself pumps lubricant along the groove path, generating the pressure that keeps the two faces separated. Conversely, a plain washer may suffice when surface speed is low, loads are light and steady, and lubrication arrives continuously from an external system. The decision hinges on load, speed, and how oil actually reaches the face.
Do all bearings need lubrication?
Every bearing type – thrust washer, sleeve bearing, rolling element – depends on lubrication to reduce friction, wear, and heat. A bearing minimizes friction between parts, while lubrication sustains that smooth movement during operation. Strategies differ. Oil-filled bearings rely on a reservoir-fed or porous structure to supply lubricant continuously; grease-lubricated designs trap thickened lubricant at the contact; dry-running bearings use low-friction solids such as PTFE where oil is impractical, as in cryogenic service.
Design features like grooving change how much lubricant a surface retains and therefore how it is fed. Specifying the right approach for hardened and ground bushings means matching lubricant, geometry, and operating temperature to the load path. In high-demand OEM environments, the right lubrication strategy, whether through oil-filled bearings, engineered groove patterns, or advanced surface treatments, is essential for achieving the low defect rates and long-wearing, high-reliability performance SC Industries is known for.
What is the purpose of the oil groove in a plain bearing?
In a plain bearing, the oil groove distributes lubricant evenly across the bearing surface, minimizes friction, and prevents localized wear and overheating caused by a starved film. Without a channel to carry oil inward from the supply, lubricant concentrates near the inlet and thins across the load zone.
Precision-engineered grooves solve this: a figure-8 pattern circulates oil through the center of the face, while a spiral geometry feeds lubricant progressively toward the outer edge as it rotates. A properly cut grooved sleeve bearing or thrust washer maintains a more uniform film and stable operating temperature. Groove depth, width, and blend radius control flow, so they require tight tolerances rather than cosmetic cuts.
What do the grooves in a plain bearing sleeve do?
The grooves in a plain bearing sleeve act as distribution channels: they carry lubricant along and around the sleeve, maintain a consistent film between shaft and bore, and reduce the risk of metal-to-metal contact. Geometry and placement matter enormously. An axial groove feeds oil along the sleeve, while a helical path spreads it circumferentially as the shaft turns. Groove position relative to the load zone determines whether the film survives peak pressure.
A grooved sleeve bearing engineered for heavy-duty OEM service must place those channels precisely, as a misplaced groove interrupts the very film it is meant to support. In demanding equipment, correct groove configuration is the difference between predictable service life and premature failure. Additionally, a grooved sleeve bearing can be custom-designed to optimize lubricant retention and distribution for specific application requirements, ensuring maximum durability and operational reliability under severe loads and continuous duty cycles.
Grooving earns its cost in some applications and adds nothing in others; the right call depends on your loads, speeds, and how lubricant reaches the face. See the oil-groove patterns we machine, and if you remain unsure which your application needs, send us the operating conditions and we will advise.
Sleeve bearings and plain thrust washers outperform rolling elements under high shock, contamination, and low-speed loading typical of heavy-duty and off-highway service.
Every part is produced to customer print, with tolerances held as tight as ±0.0005″ and controlled micro-finishes.
Axial force is the thrust that pushes along a shaft rather than turning around it, demanding a bearing surface engineered to slide under load, not roll across it. Plain thrust bearings like washers, sleeves, and custom-machined components deliver that sliding-contact solution: hardened, ground steel parts that hold axial position and spread load across a broad face in the most demanding OEM equipment.
The following overview covers the specific plain-element components SC Industries has machined to customer print for decades: thin-wall thrust washers, sleeve bearings, hardened thin rings, collars, and wear plates. For the wider engineering picture of axial-load support, start with our primer on Industrial Thrust Bearings.
What is the difference between a thrust bearing and a thrust washer?
A thrust bearing and a thrust washer are related but not interchangeable. In a plain, sliding-contact design, the thrust washer is the working part – the hardened, ground surface that actually carries the axial load as one component rotates against another. A “thrust bearing,” by contrast, often describes a complete assembly, containing rolling elements like balls or rollers to handle high-speed axial loads with minimal friction.
Rolling-element designs stack balls, cylindrical rollers, or needles between two races. Those rolling designs reduce friction by rolling rather than sliding. That distinction also helps answer the common shop-floor question: thrust washer vs. flat washer.
A thrust washer is a precision bearing surface, heat-treated, dimensioned, and finished to run against a rotating face for millions of cycles. Thin-wall thrust washers take this further, packing a hardened bearing surface into a minimal axial envelope. This allows designers to control end play in tight gearboxes, planetary sets, and pivot assemblies without adding stack height to heavy-duty OEM equipment.
When evaluating plain thrust bearings: washers, sleeves, and custom-machined components, it is critical to recognize their functional differences and specify only the correct, precision-machined component for high-reliability axial-load applications.
Are sleeve bearings better than ball bearings?
For axial and radial support in heavy machinery, the honest answer is that “better” depends entirely on the operating environment; there is no universally superior choice. A sliding contact bearing, such as a sleeve bearing or plain thrust washer, carries the load over a large contact surface, while a ball bearing carries the same load through a few points of rolling contact. Rolling contact wins on friction and speed; as a result, ball bearings dominate high-rpm, lightly loaded, clean applications.
But when the load is spread over a broad hardened surface, the other advantages gained matter far more in off-highway and OEM service:
Shock and impact tolerance, with no concentrated point stresses to brinell a raceway
High static and dynamic load capacity for a given envelope
Quiet, vibration-damping operation
Contamination resistance in dirty, gritty, or poorly lubricated conditions
Fewer moving parts, and therefore lower maintenance and simpler replacement
Our expertise sits squarely in this sliding-contact category. As a custom collars and shafts manufacturer and a producer of sleeve and thrust bearings, we build plain components for high-load, low-speed, and contaminated environments, precisely where rolling elements are most vulnerable to fatigue, spalling, and debris damage.
When should I use a sleeve bearing instead of a ball bearing?
Reach for a sleeve bearing whenever the application punishes a rolling element. Three conditions in particular tip the decision toward plain, sliding-contact parts:
Great shock and cyclic impact – articulating joints and pivot pins that slam under load will brinell a ball raceway but ride comfortably on a broad sleeve or thrust face.
Dirty or abrasive surroundings – mud, sand, ore dust, and metal chips destroy the clearances rolling elements depend on, while a sleeve keeps functioning.
Quiet, maintenance-free duty, low-speed assemblies that must run for years without service benefit from the simplicity of a sliding bearing.
These are exactly the conditions our customers face. Heavy-duty on- and off-highway vehicles, construction and agricultural equipment, and a broad range of industrial OEM machinery all depend on plain thrust bearings and sleeves at their most heavily loaded joints. Because those joints rarely match a catalog part, we custom-machine sleeve bearings, custom thrust washers, and matching collars to exacting tolerances for each print.
The same discipline that makes us a dependable custom collars and shafts manufacturer enables us to pair a hardened sleeve to a ground shaft or a thrust bearing to a specific housing bore, so the finished assembly controls both radial and axial motion the way the designer intended.
For applications that require unique geometries, specialized materials, or non-standard tolerances, our ability to deliver custom thrust washers and fully integrated collar-and-shaft solutions enables OEMs to optimize durability, fit, and long-term performance in the harshest environments. This approach is especially valuable when off-the-shelf components simply cannot meet the specific demands of your assembly, making SC Industries the partner of choice for high-reliability, custom-engineered bearing solutions.
What is another name for a thrust washer?
Terminology for these parts drifts from one industry and OEM to the next, even when the component is functionally identical. Depending on the print, the same hardened annular part may be called a thrust plate, bearing wear plate, wear ring, thrust ring, or hardened thin ring. All describe a flat, heat-treated bearing surface that absorbs axial load and protects the softer components around it.
Bearing wear plates are the favored term when the part’s function is to take the brunt of the friction so an expensive housing or gear face does not; “thrust washer” is preferred when the emphasis is on controlling end play. The underlying function – a hardened sliding surface engineered for axial contact – does not change with the label. That consistency is why a single supplier can serve so many naming conventions.
As a hardened thin ring manufacturer and a source for custom wear plates, we translate whatever the part naming convention shown in the customer’s drawing using the same disciplined process: correct material, hardness, flatness, and finish. Whether the callout reads “thrust washer,” “wear plate,” or “thin ring,” the component leaves our floor to the same standard.
What are the different types of thrust washers?
We custom-machine plain thrust washers to your exact specifications across a wide range of designs. As a hardened thin ring manufacturer and a leader in custom thrust washers, SC Industries delivers a comprehensive array of options engineered for demanding OEM environments:
Flat thrust washer: the baseline hardened annular bearing surface, ground parallel for even load distribution. These are often specified when simplicity and maximum bearing area are required, with microfinish and Total Indicator Reading (T.I.R.) held to exacting standards.
Grooved washers; having flat faces interrupted by oil-distribution grooves in figure-8, double-8, and spiral patterns that route lubricant across the bearing surface and flush away debris. For a detailed comparison of grooved and ungrooved designs, see Oil-Grooved vs. Plain Thrust Washers: Does Your Application Need Grooving?
Custom-profiled thrust washers: stepped, chamfered, tabbed, or contoured geometries that locate, key, or clock the washer within a specific assembly. As a custom thrust washer specialist, we routinely deliver application-specific profiles that integrate seamlessly with mating components and unique housings.
Hardened thin rings: precision components engineered for applications with minimal axial envelope, where space constraints demand maximum load-carrying capability in the thinnest possible form factor. As a recognized hardened thin ring manufacturer, SC Industries controls heat treatment, flatness, and finish to ensure consistent, long-wearing performance even under extreme axial loads.
Material selection drives performance. Many of these parts are made from chromium-bearing steel, a high-carbon, roughly 1.5% chromium alloy, hardened and tempered for a durable, fatigue-resistant working surface. Where an application calls for different wear or corrosion behavior, we match the alloy and heat treatment to the print.
Across all of these types, the value is in the numbers: precision micro-finishes and tolerances held as tight as ±0.0005″, so that mating faces run true and end play stays within design. The same standards apply whether the order is a single prototype or a production run of tens of thousands.
As a hardened thin ring manufacturer and a source for custom thrust washers, we treat a flat blank, a spiral-grooved washer, and a contoured wear ring as variations on one controlled discipline rather than separate product lines. This unified approach ensures that every component, regardless of its geometry or application, meets the precise requirements of your heavy-duty OEM environment.
What is the purpose of a thrust washer?
A thrust washer does two things at once: it prevents unwanted axial movement and distributes thrust load across a stable bearing surface. In any rotating assembly, axial forces try to walk a shaft along its centerline; a thrust washer intercepts that force, holding the shaft’s end play within a controlled band while spreading the load so no single point overheats or galls. In heavy-duty and OEM assemblies, that steady axial location is what keeps gears meshed, seals sealed, and clearances predictable under peak load. Manufacturing precision is what turns that concept into service life.
A flat, hard, low-friction surface reduces drag and resists wear, extending the interval between rebuilds. Two measurements govern how well a washer performs: micro-finish, which determines friction and how the surface carries a lubricant film, and the T.I.R., which captures how flat and true the running face actually is. Tightly controlled T.I.R. keeps the load evenly distributed rather than concentrated on a single spot.
Delivered as thrust washers, bearing wear plates, or precision wear plates, our parts meet those metrics, allowing them to run cool, quiet, and stable under the high axial loads typical of off-highway drivetrains. Bearing wear plates specifically serve as sacrificial, precision-machined surfaces that absorb wear and protect more expensive mating components, such as housings, gears, or shafts, from direct contact and premature failure. By integrating bearing wear plates into your assembly, you ensure that the critical load is distributed over a controlled, hardened surface, maximizing both durability and service life in the most demanding OEM applications.
How are thrust washers manufactured?
Producing a bearing-grade washer is a sequence of tightly controlled operations, each verified before the next can proceed. In broad strokes, our process runs like this:
Multi-axis CNC turning shapes the outside diameter, bore, and face profile from bar or blank, including any steps, chamfers, or grooves called out on the print.
Precision heat treating hardens the steel to the specified case or through-hardness, giving the bearing surface its wear resistance and fatigue strength.
Centerless grinding trues outside diameters, while internal grinding finishes bores concentric to those references.
Face and finish grinding refines the running surfaces to their final flatness and micro-finish.
Metrology and inspection verify every critical dimension against the drawing under an ISO 9001:2015 quality system before parts ship.
This chain allows us to achieve tolerances as tight as ±0.0005″ and micro-finishes down to 8 RMS, on surfaces that must run true for the life of the machine. It also encompasses built-in value-added features including oil-grooving in figure-8, double-8, and spiral patterns machined and blended so lubricant reaches the entire bearing face, and special contours or keying features cut to suit a particular housing.
Whether the part is a thin thrust washer or a heavier run of industrial wear plates or precision wear plates, the same metrology-driven discipline governs every step. This in large part is how more than 75 years of bearing work has kept the defect rate so low. As demand for precision wear plates and industrial wear plates continues to grow in heavy-duty OEM and industrial applications, SC Industries’ multi-axis CNC turning, centerless and internal grinding, and ISO 9001:2015 quality management, ensure every component achieves the exact flatness, hardness, and micro-finish required for consistent, reliable performance. These manufacturing controls are especially critical for precision wear plates and industrial wear plates that must withstand sustained axial loads, abrasive environments, and long service intervals without failure.
By integrating these rigorous standards into every phase, from heat treatment through final inspection, SC Industries delivers wear components that set the benchmark for durability and dimensional accuracy in the most demanding OEM assemblies
Are there specific industries or applications where sleeve bearings are clearly preferred?
Some sectors reach for plain, sliding-contact bearings almost by default, as their operating conditions reward exactly what these parts do best. Heavy-duty vehicles, off-highway and construction equipment, agricultural machinery, and industrial OEMs all run joints that experience high load, low speed, shock, and contamination – the profile where sleeve bearings and plain thrust washers clearly outperform rolling elements.
Typical applications cluster around the machine’s hardest-working motion points:
Pivot points and kingpins on steering and suspension linkages
Articulating joints on booms, buckets, loaders, and implements
Load-bearing thrust faces in transmissions, planetary drives, and winches
In each case, the plain bearing takes concentrated, dirty, intermittent loading that would quickly fatigue a ball or roller. For decades, SC Industries has supported those assemblies as a custom collars and shafts manufacturer, machining hardened sleeves, collars, thrust washers, and industrial wear plates to the print and the demands of a given drivetrain or linkage. You receive fully matched parts—such as collars for shafts and washers for housings—that work together. These matched components reliably control both radial and axial motion in the field.
You can see our precision hardening and grinding in every bearing and bushing we make. Industries with harsh duty cycles, such as mining, forestry, material handling, and heavy transportation, consistently select SC Industries for our ability to deliver industrial wear plates and precision-machined bearing solutions that withstand abrasive environments, high shock loads, and extended service intervals. As a custom collars and shafts manufacturer and supplier of industrial wear plates, we ensure OEMs receive components that fit their unique assembly requirements and deliver maximum durability and reliability where it matters most.
Every plain thrust bearing we make still starts the same way – as a drawing and a tolerance stack. When your next axial-load challenge reaches that stage, walk your thrust washer specs through with our team, and we’ll map the material, hardness, and finish to your exact requirements.
Posted by on | Comments Off on What Causes Thrust Bearing Failure? Causes, Prevention and Material Selection
Key takeaways:
Most thrust bearing failures trace back to controllable variables: material grade, hardening, tolerances, and surface finish, decided during manufacturing, not in the field.
Precision matters: tight flatness and parallelism, a consistent micro-finish, and full-depth heat treatment resist abrasive, adhesive, and fatigue wear under axial load.
Lubrication is not optional; contamination and film breakdown drive heat, scoring, and rapid failure.
Regular metrology, inspection, and record-keeping catch wear while it is still gradual, before it becomes catastrophic.
Thrust bearings carry axial load across a comparatively small face, so every decision about material, hardness, and surface finish ultimately results in either a long service life or early distress. Failure is not random; it follows from specification drift, process shortcuts, or neglected maintenance.
This article examines the failure modes a manufacturer can actually control and the disciplines that keep them in check, starting on the shop floor with material selection and heat treatment, and continuing through the field with lubrication and inspection.
Most failures trace back to three controllable variables: the wrong material for the load, incomplete or uneven hardening, and tolerances that drift outside print. A face that is too soft deforms and gallops under axial pressure; one hardened unevenly develops localized fatigue, and a component ground outside its flatness or parallelism window concentrates load on a fraction of its intended area.
Controlling these variables is a process problem. An ISO 9001:2015 certified quality system, precise heat treating, and consistent micro-finishes remove much of the variation that seeds early failure. Prevention rests on rigorous inspection, metrology-verified geometry, and specification of a proven alloy, matched to the operating load.
This is exactly where SC Industries’ process discipline pays off. Our ISO 9001:2015-certified system governs every stage, from incoming material verification to final inspection. The specification deviations that seed early failure are caught and corrected before a part ships – one reason the operation runs at a consistently low defect rate. Precision heat treating drives hardness to full depth and uniformly across the thrust face, eliminating the soft spots and uneven cases that lead to galling and localized fatigue.
Internal and centerless grinding then bring the face to a controlled micro-finish, down to an 8 RMS surface where the application calls for it. Asperity contact is minimized, and the film-supporting geometry the design depends on is actually present in the finished part. Together, those capabilities address the root causes of failure rather than compensating for them in the field.
Best-practice prevention follows the same logic. Starting with the right alloy provides the through-hardening response and fatigue resistance a heavily loaded thrust face requires. It should be specified against the actual axial load and temperature, not as a generic default. Verify hardness after heat treatment, not just before. Confirm flatness, parallelism, and the Total Indicator Reading or T.I.R. with metrology-grade instruments against the print. Measurement, not feel, is what proves a face will carry load across its full designed footprint.
Document those readings so the process stays in statistical control and drift is visible before it becomes scrap or a field failure. Handled this way, durability is engineered in through material selection, verified hardening, and inspection – not left to chance.
What causes wear on industrial thrust bearings?
Wear on a thrust face generally follows one of three mechanisms. Abrasive wear comes from hard contaminants scoring the surface; adhesive wear from metal-to-metal contact when the lubricant film breaks down; and fatigue wear from repeated contact stress that eventually spalls the hardened layer. Manufacturing precision is the first defense: holding tolerances near ±0.0005″ and finishing to an 8 RMS micro-finish reduce the asperity contact that starts abrasive and adhesive damage.
Lubrication does the rest: oil-grooving patterns such as figure-8, double-8, and spiral configurations distribute lubricant evenly across the face and flush debris away. For a detailed comparison of grooved and ungrooved designs, see Oil-Grooved vs. Plain Thrust Washers: Does Your Application Need Grooving?. Correct material selection and full-depth heat treatment then give the surface the hardness it needs to resist degradation under sustained heavy load.
Why do thrust bearings fail?
Root causes are almost always specification or process deviations: hardness below the required range, grinding or finishing that leaves the surface too rough, or dimensions that fall outside the tolerance band. Each shifts load away from the design footprint and accelerates fatigue. Disciplined process control, of the kind reflected in a low defect rate and documented inspection, catches these before parts ship. Lubrication failure is the other major driver because contamination and film breakdown quickly raise friction and heat.
A common question asked is: “How long can thrust bearings operate without lubrication?”. The honest answer is: not long under load. Dry running spikes surface temperature and can score a hardened face in minutes, so never treat lubrication as optional.
Can you explain the typical maintenance requirements for industrial thrust bearings to ensure optimal performance?
Effective maintenance depends on proper measurement. Inspect at a defined interval for wear, checking T.I.R. and surface-finish integrity against the original print rather than by feel. Keep a lubrication schedule suited to the duty cycle, and choose the best grease for bearings in your application, one whose viscosity and additive package protect the micro-finish and resist the heat generated at the thrust face.
Maintaining inspection records over a multi-year window – three years is a practical benchmark – turns isolated readings into trend data, so wear is caught while it is still gradual rather than after it causes a failure.
What are some common signs that an industrial thrust bearing needs to be replaced?
Several indicators signal that a thrust bearing is reaching the end of its useful life:
Increased vibration or a rising noise floor during operation
Abnormal noise, grinding, ticking, or a change in pitch under load
Excessive axial play or perceptible looseness in the shaft
Visible scoring, discoloration, or pitting on the bearing face
Measured deviation provides the objective test. When a face drifts beyond roughly ±0.0005″ on a critical dimension, or its finish degrades, it is no longer holding the geometry it was built to. Regular metrology and inspection catch these shifts early, before a marginal part becomes a catastrophic breakdown.
Do thrust bearings need regular maintenance?
Yes. Even a component built to exact tolerance and finish depends on scheduled maintenance to maintain that standard. Precision surfaces do not maintain themselves; contamination, marginal lubrication, and thermal cycling gradually erode both the finish and the fit. Neglect accelerates wear and invites failure, no matter how well the part was made. Maintenance frequency should track the application: high axial load, elevated temperature, or contaminated environments warrant tighter intervals than light, clean-running duty.
Decades of machining and quality-control experience point to the same conclusion: match the interval to load and environment, not to a generic calendar. SC Industries’ practical recommendation is to tier the interval to the operating conditions a component actually sees. The conditions that push the film and hardened face the hardest – heavy axial loads, high duty cycles, elevated temperatures, or contaminated environments – require inspection and re-lubrication on a short cycle, verifying T.I.R. and surface finish against the print at each interval..
For moderate, steady-state service, a longer interval is defensible provided lubrication is monitored, and inspection records show no adverse trends. For light, clean, intermittent duty, intervals can be extended further, with periodic verification to confirm the part is holding geometry.
In every case, let the trend data drive the schedule. If inspection readings show accelerating wear, tighten the interval regardless of what the initial plan called for. The goal is to match maintenance frequency to the real load and environment of the specific application, not to impose one calendar across dissimilar components.
How are thrust bearings lubricated?
Thrust bearings are lubricated by several methods depending on load and speed. Grease packing suits lower-speed, sealed applications; an oil bath serves higher-speed or higher-heat service; and engineered oil-grooving, figure-8 and double-8 patterns machined into the face route lubricant precisely where axial pressure is highest. Selecting the correct lubricant matters as much as the delivery method: viscosity and additive chemistry must match load, speed, and temperature.
The best grease for bearings in one application may be entirely wrong for another. The right grease will form a resilient lubricating film that preserves the micro-finish, protects against contamination, and resists thermal breakdown, especially at the thrust face where loads and temperatures peak.
Executed well, lubrication maintains a continuous film between mating surfaces, preserves the micro-finish, and extends service life far beyond what material and geometry alone can deliver. For guidance on selecting the right bearing type for your application, see How to Select and Specify a Thrust Bearing.
Repeat wear or scuffing on a thrust face almost always traces back to the print or the process, not the field. Get the material, hardening, tolerances, and lubrication right at the source, and longevity follows. If you’re specifying or troubleshooting a hardened thrust component, send us your prints for a manufacturing review.
Posted by on | Comments Off on How to Select and Specify a Thrust Bearing
Key takeaways:
Thrust bearing selection depends on three variables: axial load, application environment, and specified tolerance.
Construction, mining, and hydraulic systems each impose distinct demands on load capacity, surface finish, and dimensional control.
Tolerances as tight as ±0.0005″ and a defined micro-finish are the levers that determine wear life and stability.
The costliest failures usually trace back to underestimated loads, loose tolerance calls, and skipped heat treatment, not to the bearing type itself.
Thrust bearing selection hinges on matching three critical variables – axial load, application environment, and tolerance – to your assembly’s specific demands. This is not a catalog lookup; it is an engineering decision that directly controls wear life, stability, and failure risk.
This guide walks through the criteria that drive that decision, and the specification mistakes that quietly shorten service life. For a broader treatment of the subject, see Industrial Thrust Bearings.
How are thrust bearings used in construction equipment?
In excavators, wheel loaders, and mobile cranes, thrust bearings absorb axial forces from boom articulation, swing drives, and hydraulic linkages, maintaining precise shaft positioning under load. These applications involve frequent shock and vibration, so selecting thrust bearings for construction equipment starts with defining peak transient loads, not just steady-state conditions. Longevity depends on tight geometric tolerances, controlled micro-finishes, and hardened, ground bushings with sufficient case depth to resist brinelling and spalling. Durable surfaces preserve lubricant films, while flat, true races ensure even load distribution.
When evaluating how to select and specify a thrust bearing for heavy-duty construction applications, it is critical to consider the unique operational environment: cyclical high-impact loads, exposure to contaminants, and the need for precise axial positioning under dynamic conditions. Specifying components produced with ISO 9001:2015-certified processes, low defect rates, and metrology-driven inspections ensures each bearing meets the demanding tolerances and micro-finishes required for extended service life.
Multi-axis CNC turning centers and internal grinding capabilities are vital for achieving the concentricity and flatness that prevent premature wear and maintain performance under severe duty cycles. Always confirm that the bearing’s micro-finish matches the application’s shock and vibration profile; overlooking these factors can lead to rapid degradation and unplanned downtime.
How do you determine the right type and size of thrust bearing for a specific industrial application?
The governing variables are load capacity, shaft diameter, operating environment, and the tolerance band the assembly can accept. Addressing the question “How do I select the right industrial thrust bearing?” productively means quantifying the axial load spectrum first, then working outward to the bore, seat, and envelope constraints the surrounding structure imposes. Temperature, contamination, and lubrication regime then narrow the material and finish choices.
Dimensional discipline is decisive: what tolerances are recommended for thrust bearings in high-precision service typically resolves to bands such as ±0.0005″, held consistently across an entire run. Specifying an appropriate micro-finish and a defensible total indicator reading ensures uniform load sharing and minimal wear—a runner out of square by even a few tenths concentrates stress on a fraction of the contact area and accelerates fatigue.
Total indicator reading (T.I.R.) is the callout that governs this squareness and running truth: it is the full range a dial indicator sweeps across a rotating surface, capturing the combined effect of runout, wobble, and lack of perpendicularity between the bearing face and its axis of rotation. Because a thrust bearing exists to distribute axial force evenly across an annular contact, T.I.R. is often the single most consequential geometric requirement on the print, more so than any individual diameter. Determining an appropriate value means working backward from the load contact you need: the tighter the acceptable stress concentration, the tighter the T.I.R.
High-precision, heavily loaded service commonly calls for face T.I.R. in the range of 0.0002″ to 0.0005″, while less demanding or slower-turning assemblies may tolerate 0.001″ or more. Set the value by considering rotational speed, axial load magnitude and how evenly it must be shared, the flatness and squareness of the mating seat, and the stack-up of the surrounding assembly. There is no benefit to specifying a bearing face flatter than the housing shoulder it registers against.
Always reference T.I.R. to an explicit datum and state the feature being measured (face, bore, or outside diameter), because an unreferenced T.I.R. callout is every bit as ambiguous as an omitted tolerance. Multi-axis CNC turning for concentric features and precision grinding for face and diameter truth are what make a demanding T.I.R. repeatedly achievable. The value you specify should reflect what the chosen process can hold across the full run, not a single first-article part.
Which thrust bearing is best for mining equipment?
Mining is arguably the harshest duty a thrust bearing can face. Crushers, draglines, haul-truck spindles, and conveyor drives combine extreme axial loads with abrasive dust, moisture, and constant vibration. A high-load thrust bearing built for this service has to carry sustained force without deforming while resisting the grit that infiltrates every seal.
The advantage of hardened and ground bushings is straightforward: hardened surfaces resist abrasive wear, and precise grinding maintains contact geometry consistency, enabling the load to spread instead of concentrating. Components manufactured under an ISO 9001:2015-quality system with a documented low defect rate give operators the repeatability they need. Every replacement behaves like the last one, important when a single failure can idle an entire production line.
What are common thrust bearing design mistakes?
The recurring errors are predictable. Engineers underestimate the load envelope by designing to nominal rather than peak conditions; consequently, they specify a tolerance loosely or omit it, leaving the shop to guess. Revisiting recommended tolerancesfor thrust bearings during design review routinely exposes internally inconsistent callouts: an ambitious diameter tolerance paired with an undefined finish, a flatness requirement with no datum, or a T.I.R. value stated without the datum it must reference.
Neglecting micro-finish and heat treatment is equally common, and both directly govern fatigue life. Downstream, inadequate incoming inspection and poor record-keeping mask process drift until it becomes a recall. Finally, specifications that ignore what modern manufacturing can hold – multi-axis CNC turning for concentric features, centerless grinding for consistent outside diameters – either overcompensate for unnecessary precision or demand geometry the chosen process cannot repeatedly produce.
Always confirm recommended thrust bearing tolerances for your application’s duty cycle and environment, ensuring all specifications are explicit and achievable with your chosen manufacturing process. This clarity minimizes ambiguity and mitigates downstream failures or costly rework.
Which thrust bearing is best for hydraulic applications?
Hydraulic systems, pumps, motors, and swashplate assemblies require precise axial load management, low parasitic friction, and compatibility with oil-grooving patterns that route pressurized fluid across the bearing face. Figure-8 and double-8 groove configurations distribute lubricant to sustain a coherent film under fluctuating pressure, with their efficacy hinging on surrounding surface quality.
Knowing how to select and specify a thrust bearing for hydraulic applications means understanding that groove geometry, micro-finish, and dimensional tolerances must be engineered as an integrated system. For these demanding environments, tight tolerance control (often 0.0005″) and a micro-finish of 8RMS are not optional; they are the baseline for maintaining oil film stability and predictable internal leakage. Correctly specifying oil-grooving patterns, paired with a finish that neither disrupts nor starves the lubricant film, directly governs component efficiency, life, and system reliability.
When selecting and specifying a thrust bearing for hydraulic equipment, ensure groove geometry, hardness, and finish are specified in tandem and reflect both the pressure regime and the application’s contamination risk. Too rough a finish disrupts the film, too smooth and it starves; either way efficiency and stability degrade. Specify groove geometry and finish together, never in isolation.
Posted by on | Comments Off on How Custom Thrust Bearings Are Manufactured
Key takeaways:
Custom thrust bearings are shaped by multi-axis CNC turning, milling, and precision grinding to hold tolerances as tight as ±0.0005″.
A certified quality system with metrology inspection verifies micro-finish and dimensional accuracy before parts ship.
Flexible scheduling supports everything from a single prototype to full production without losing repeatability.
Material selection, oil-grooving, and precision heat treat drive durability under heavy axial loads.
Axial loads in heavy-duty machinery demand precision that catalog parts cannot guarantee. A custom thrust bearing is engineered to a specific application’s load, speed, and envelope, then machined, ground, and hardened to match – a process fundamentally different from pulling a generic component off a shelf.
This behind-the-scenes look complements the broader guidance in Industrial Thrust Bearings, focusing on the equipment and process controls that separate a precision component from a commodity part.
How are precision thrust bearings machined?
The process of how custom thrust bearings are manufactured begins on multi-axis CNC turning centers, where the ring or washer profile is roughed and finished from bar stock or a forged blank. Milling adds slots, pockets, and mounting features, while centerless, internal, and face grinding adjust critical diameters and running faces to final size and micro-finish. On production thrust bearing work, this sequence refines tolerances to ±0.0005″ with surface finishes down to 8 RMS.
SC Industries, Inc. runs these operations under one roof, pairing large-diameter 4-axis turning capacity with centerless and precision grinding, enabling hardened and ground bushings and bearings to hit exact tolerances without shuttling work between shops. That integration is what sets true industrial machined components apart from off-the-shelf parts: a catalog bearing meets a generic standard, while a custom bearing is machined to the application’s load path, clearance, and surface spec.
This controlled, sequential process defines how SC Industries, Inc. manufactures custom thrust bearings. Each bearing matches your exact needs instead of using a standard, one-size-fits-all design
How is quality verified during thrust bearing manufacturing?
Quality is verified through an ISO 9001:2015-certified quality system built on documented inspection, process control, and traceability. Advanced metrology equipment confirms micro-finish bearing surfaces and dimensional tolerances as tight as ±0.0005″ before releasing a part. Our strict quality checks ensure every bearing matches the exact dimensions of the first. This flawless precision prevents out-of-tolerance faces that could otherwise ruin a heavy-duty assembly
Integral to this process are micro-finish grinding bearing surfaces, ensuring that each thrust bearing achieves the precise surface finish and flatness required for optimal load distribution and extended service life. This step is critical to achieving the repeatable, high-performance results that industrial OEMs expect from custom-manufactured components.
Can thrust bearings be manufactured in small production runs?
Yes. Custom thrust bearings do not need high volumes to be economical. Production spans a single one-off prototype through small-batch and large-scale runs, with lean, responsive schedule coordination. For OEMs that need a specialized, non-catalog bearing in modest quantities, that flexibility means the same disciplined process and inspection standards apply whether the order is one unit or a thousand. As a result, low-volume industrial machined components never compromise precision.
SC Industries, Inc. uses advanced scheduling and quality systems to ensure even small production runs of industrial machined components receive the same meticulous attention to tolerance, surface finish, and dimensional accuracy as high-volume orders. This commitment guarantees that every custom thrust bearing, regardless of lot size, meets the rigorous demands of heavy-duty OEM applications.
Can industrial thrust bearings be custom manufactured?
Custom manufacturing is the heart of how custom thrust bearings are manufactured for demanding service. Production starts with high-strength materials, typically 52100 bearing steel for maximum hardness and wear resistance. Next, we add custom oil grooves—available in figure-8, double-8, or spiral patterns—to keep the loaded face perfectly lubricated. For guidance on groove selection, see Oil-Grooved vs. Plain Thrust Washers: Does Your Application Need Grooving?.
Precision heat treat and induction hardening then build the surface durability that heavy loads and continuous rotation require. Standard bearings rarely feature the exact groove shape, bore size, or hardness your machinery needs. Purpose-built bearings eliminate these gaps to deliver superior, long-lasting performance in the field.
At SC Industries, Inc., manufacturing of custom thrust bearings is a tightly controlled process that integrates advanced machining, metrology-driven inspections, and tailored engineering to ensure each thrust bearing meets exacting standards for heavy-duty OEM applications. This approach enables the delivery of custom thrust bearings that provide superior performance, reliability, and service life compared to catalog alternatives.
Can a machine shop produce prototype thrust bearings before a production run?
Absolutely. A sound prototype-to-production workflow begins with rapid prototyping, moves through iterative engineering refinement, and validates dimensions and finishes prior to any scale-up. We build prototypes using the exact same CNC machines, grinders, and inspection tools as our main production lines. This shared equipment catches design flaws early, cuts lead times, and proves the part holds tolerance every time.
That in-house continuity lets OEMs optimize a design and then ramp up with confidence, knowing the prototype and the production industrial machined components come from one validated process. This ensures a seamless transition from prototype to full-scale production, with no loss in quality, consistency, or performance.
SC Industries, Inc. applies the same ISO 9001:2015-certified inspection protocols, metrology-driven measurements, and process controls to prototypes as to production lots, ensuring every custom thrust bearing, from initial concept to final shipment, meets the highest standards demanded by heavy-duty OEM applications.
What machining processes are used to manufacture thrust bearings?
The full sequence draws on multi-axis CNC turning, milling, drilling, boring, and threading, followed by centerless and precision grinding and specialized oil-grooving. Micro-finish grinding bearing surfaces is a critical step, ensuring that every thrust bearing achieves the required surface finish and flatness for optimal performance and longevity.
The process of how custom thrust bearings are manufactured at SC Industries, Inc. is defined by integrating these advanced machining techniques, process controls, and metrology-driven inspections. These integrated capabilities ensure every component meets the strict standards of heavy-duty OEM applications. By consolidating all processes in-house, SC Industries, Inc. delivers consistent, controlled quality and reliability, every run.
Engineered for maximum load capacity and operational longevity, industrial thrust bearings are critical to optimizing performance in demanding environments. To discuss how our precision-manufactured solutions can address your specific application requirements, connect with our engineering team today. Leverage our expertise to ensure your systems operate with uncompromising reliability and efficiency. Also take a look at the machines and inspection equipment behind our thrust bearing work, including our large-capacity 4-axis turning capability.
Posted by on | Comments Off on Industrial Thrust Bearings
Key takeaways:
Thrust bearings are designed to carry axial loads, forces acting along the shaft’s centerline. Most other rotating-element bearings handle radial loads instead.
Major design families include plain (journal-style) thrust bearings, ball thrust bearings, and roller thrust bearings, each matched to different load, speed, and space constraints.
Service life in axial-load applications hinges on tight tolerances, controlled surface finishes, correctly specified materials, and heat treatment.
Custom plain thrust bearings, machined to customer prints, support heavy-duty OEM equipment, including transmissions, gearboxes, and pivot assemblies.
Domestic manufacturing under a certified quality system reinforces traceability, dimensional control, and consistently low reject rates.
Industrial thrust bearings occupy a narrow but unforgiving corner of rotating machinery: they absorb the axial forces that press along a shaft’s centerline, loads that would rapidly wreck a bearing engineered only for radial duty. Whether the load rides on a hydrodynamic oil film, a set of rolling elements, or a precision-ground plain face, the component’s task is the same: hold axial position while rotation continues with minimal friction and wear.
The sections below examine how these bearings work, the principal design families, where they are installed, and the manufacturing discipline that separates a bearing that lasts from one that fails early. The perspective throughout is that of a shop that has machined custom plain thrust bearings for heavy-duty vehicle OEMs across generations of equipment.
What is an industrial thrust bearing?
An industrial thrust bearing is a precision-engineered component designed to support axial loads in rotating machinery, those loads being directed along the axis of the shaft rather than across it. That single characteristic separates it from most industrial bearings, which are designed to carry radial loads perpendicular to the shaft. A thrust bearing manages the forces parallel to the shaft, holding a rotating assembly in its intended axial location while still allowing it to rotate. The distinction is functional rather than cosmetic: a radial bearing resists the weight and side loads that push a shaft sideways, whereas a thrust bearing counters the push-and-pull that would otherwise drive the shaft lengthwise through its housing.
Because a single element rarely carries heavy loads efficiently in both directions, in practice, many assemblies in practice use both types together: radial bearings to locate the shaft and a thrust bearing to limit its axial travel. Thrust bearings appear wherever a rotating member must be restrained against end thrust: worm and helical gear drives that generate axial reaction, vertical shafts that carry their own weight, and clutch and transmission assemblies that see intermittent axial spikes.
For more than seven decades, SC Industries has machined custom plain thrust bearings and related components for heavy-duty industrial and OEM applications. That 75+ years of experience is concentrated in a specific discipline: plain, sliding-face thrust bearings produced to exacting print requirements rather than off-the-shelf catalog parts, which shapes the engineering priorities described throughout this guide.
How do thrust bearings work?
Every thrust bearing interposes a controlled load-bearing interface between a rotating collar and a stationary support. How that interface carries load defines the bearing’s type. In a plain thrust bearing, a flat, precisely ground face slides against a mating surface. Under load and rotation, lubricant is dragged into the interface and pressurized, forming a thin hydrodynamic film that separates the surfaces and carries a significant share of the load.
In rolling-element designs, balls or rollers ride between two grooved or flat thrust washers, converting sliding contact into rolling contact to reduce friction. In anti-friction thrust bearings, shouldered races help the rolling elements absorb thrust in either direction; in hydrodynamic thrust bearings, the oil wedge itself supports the rotor.
Regardless of type, an axial thrust bearing succeeds or fails on the quality of its working surfaces. A thrust face that is out of flat, tapered, or rough will concentrate the load on a fraction of its area, increasing local pressure, heat, and wear. This explains why tolerances are so tight. On the plain thrust bearings we produce, dimensional control runs as tight as ±0.0005″, and bearing faces meet demanding flatness and parallelism standards, verified as total indicated runout (T.I.R.) during inspection. Surface texture matters just as much: a controlled micro-finish down to 8 RMS gives the lubricating film the smooth, consistent boundary it needs to form and hold.
Achieving those numbers repeatedly is a manufacturing problem, not just a design one. Roughing and semi-finishing are performed on Multi-Axis CNC Turning Centers to establish concentric bores, faces, and grooves in a controlled sequence, while precision heat treating develops the hardness and dimensional stability required by the finished part. These turning centers combine multiple operations — OD and ID turning, facing, contour and taper turning, and grooving – within a single controlled setup, so that bore, face, and groove references are cut relative to one another rather than being reestablished across separate machines.
Bar feed and multi-axis tooling let the same platform run prototype quantities and long production runs while maintaining concentricity between the surfaces that ultimately carry the load. Because hardening moves metal, critical faces and bores are ground after heat treatment to recover the final tolerance and finish, an order of operations that keeps the bearing true where it counts.
What are thrust bearings used for?
The core job of a thrust bearing is to absorb axial load and fix the axial position of a rotating member. In heavy machinery, that translates into a handful of related functions:
Supporting sustained axial loads in rotating assemblies, such as the end thrust generated by helical and worm gearing.
Preventing unwanted shaft movement, keeping gears, seals, and couplings in their designed positions under load.
Carrying the weight of vertical rotating shafts, where gravity itself becomes a continuous axial load.
Absorbing intermittent thrust spikes from clutch engagement, directional load reversals, and shock loading.
Thrust bearing applications in the field tend to cluster around equipment that combines high loads with limited space and demanding duty cycles: transmission and final-drive assemblies, pump and compressor thrust collars, pivot and articulation joints on mobile equipment, and gear reducers of all sizes. In turbomachinery, thrust bearings maintain the axial pressure balance that keeps a rotor from walking under changing operating conditions, an application where even modest misalignment or wear can cascade into rapid failure.
Because these operating envelopes vary so widely, standardized parts often fall short. Custom thrust bearings let an OEM match bore, outside diameter, face area, groove pattern, and material to the exact load, speed, and lubrication regime of a specific machine. A bearing sized and finished for a slow, heavily loaded pivot is a very different part from one built for a high-speed collar, even though both carry axial load. Matching the component to the application, rather than forcing the application to accept a catalog part, keeps axial-load service reliable over a long duty life.
Where are thrust bearings typically used?
Within a machine, thrust bearings are located at the specific points where axial load is generated or must be supported. Common installation points include: gearboxes and gear reducers, where meshing helical or bevel gears generate axial reaction; transmissions and final drives, where directional changes and clutch action produce end thrust; and heavy-duty rotating assemblies such as pump rotors, compressor shafts, turntables, and articulated pivots. Anywhere a designer needs to locate a rotating element axially while allowing it to spin, a thrust bearing, or a thrust face integrated into another component, will usually appear.
These are demanding industrial bearing applications by nature. The environments combine high load-capacity requirements with contamination, shock, vibration, temperature swings, and long service intervals between overhauls. A bearing that performs on paper but cannot tolerate marginal lubrication or slight misalignment will not survive in a mining drivetrain or a construction machine’s pivot. Durability, therefore, is engineered in through material selection, surface hardness, groove geometry, and finish, not added afterward.
Plain thrust components frequently share a machine with radially loaded sleeves and sliding elements. Therefore, the same precision that defines a good thrust face also defines a good hardened-and-ground bushings program. In many heavy-duty assemblies, the thrust washer and the load-bearing sleeve are companion parts machined to the same standard. Consequently, specialized bushing and bearing OEMs typically manufacture both. Hardened, ground running surfaces resist the galling and wear that shorten the life of any sliding component, whether it carries load radially, axially, or both.
What industries commonly use industrial thrust bearings manufactured in the USA?
Demand for domestically produced industrial thrust bearings concentrates in the industries that build and operate heavy, capital-intensive equipment:
Heavy equipment and construction machinery, transmissions, final drives, and pivot assemblies that see continuous axial load and shock
Mining and material handling, drivetrains, conveyors, and crushers operating in abrasive, high-load conditions
Rail, traction, gearing, and truck assemblies where reliability and long overhaul intervals are non-negotiable
Energy and power generation, pumps, compressors, and turbomachinery that depend on precise axial control
Agriculture and off-highway vehicles, gearboxes and drive assemblies exposed to variable load and contamination
For OEMs in these sectors, domestic manufacturing carries specific, practical value beyond logistics. Sourcing heavy-duty thrust bearings from a certified domestic shop supports full material traceability, tighter change control, and direct engineering communication when a print is revised or a tolerance is questioned. Quality-critical parts are produced under an ISO 9001:2015 quality system, which formalizes inspection, documentation, and corrective action so that conformance is demonstrable rather than assumed.
Certification means the shop maintains a documented quality management system, audited by an accredited registrar, that governs everything from incoming material verification and calibrated measurement equipment to process control, nonconformance handling, and continual improvement. For a buyer, that framework turns quality from a promise into a record: each lot carries the inspection data, material certifications, and traceability that let an OEM’s own auditors reconstruct exactly how a part was made and measured.
Among domestic industrial thrust bearing manufacturers, buyers care more about consistency and inspection rigor than headline capacity alone. A disciplined process keeps defect rates low across production runs, backed by metrology-driven inspection that verifies flatness, runout, bore size, and finish before parts ship. Inspection is layered rather than final-only: first-article checks confirm the setup against print before a run begins, in-process gauging catches drift as tooling wears, and final metrology, surface-finish measurement, bore and OD verification, and T.I.R. checks for flatness and parallelism confirm conformance on the finished part.
A consistently low reject rate across those checkpoints separates a repeatable production process from one that merely produces an acceptable first piece. It also allows an OEM to fold a supplier’s parts into its own line without incoming re-inspection on every lot. Larger components benefit from 4-axis turning capacity that handles large-diameter collars and rings in fewer setups, reducing the accumulated error introduced by repeated re-fixturing.
The fourth axis adds controlled positioning, allowing the machine to cut features, cross-holes, off-axis grooves, and contoured profiles without moving the part to a second machine. Thus, the bore, face, and secondary features all share a single datum. For large-diameter thrust rings in particular, machining more of the part in one clamping preserves the concentricity and squareness that would otherwise degrade each time the part is unclamped and relocated. Taken together, certification, measurement, and machining capabilities enable an OEM to treat a supplier as an extension of its own quality organization.
What are the different types of thrust bearings?
Thrust bearings divide into three broad families, distinguished by how they carry axial load:
Plain (journal-style) thrust bearings, also called thrust washers or thrust rings, carry load across a flat, precision-ground sliding face, typically supported by a lubricating film and often featuring machined oil grooves to distribute lubricant. They are compact, shock-tolerant, and well suited to heavy, comparatively low-speed loads.

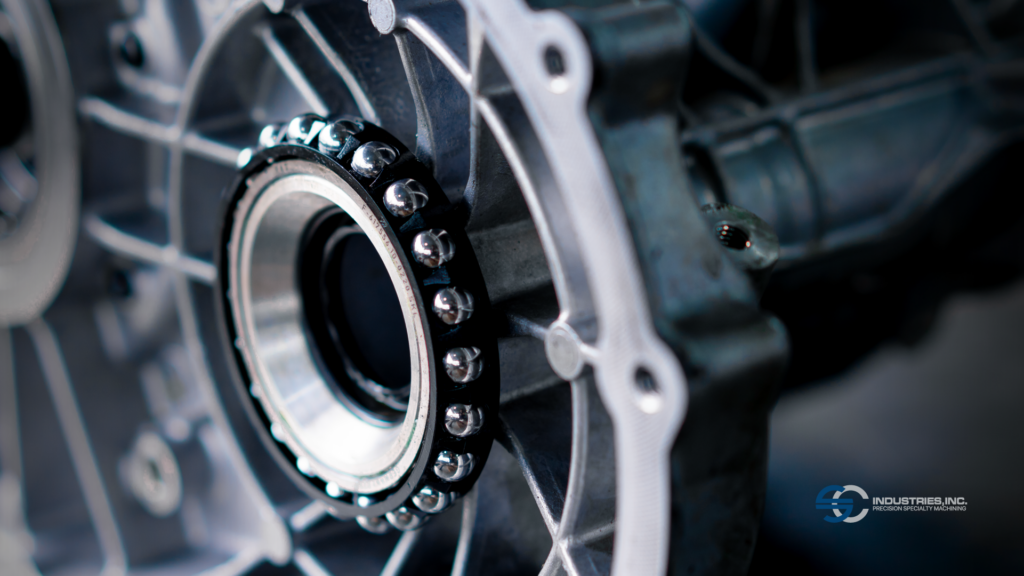

Ball thrust bearings use a ring of balls between two grooved thrust washers. They handle moderate axial loads at higher speeds with low friction, but tolerate little to no radial load and are sensitive to misalignment.
Roller thrust bearings, whether cylindrical, tapered, or spherical roller designs, substitute rollers for balls to increase load capacity through greater contact area. Tapered roller thrust bearings handle heavy combined radial and axial loads in high-capacity drivetrains.
Being candid about scope matters here: we manufacture custom plain thrust bearings. The rolling-element families are included above so specifiers understand the full landscape and can recognize when a plain design is, or is not, the right answer for their industrial bearings application. Plain thrust bearings excel in high-load, moderate-speed, and high-shock applications with tight space constraints, outlasting complex rolling assemblies when paired with a hardened, precisely finished sliding face.
For a deeper technical treatment of construction, groove geometry, materials, and print requirements specific to sliding-face designs, see Plain Thrust Bearings. Understanding the trade-offs among these types of thrust bearings is the first step toward specifying a component that matches its purpose rather than merely fitting the requirement.
Are thrust bearings axial or radial?
Thrust bearings are, by definition, axial. They are designed to support axial loads – forces acting parallel to and along the shaft’s centerline – not the radial loads that push perpendicular to the shaft. This is the essential dividing line in bearing selection: a radial bearing reacts to side loads and shaft weight acting across the axis, while an axial thrust bearing reacts to the end thrust that would otherwise drive the shaft lengthwise.
In industrial bearing applications, the distinction between axial and radial support is foundational. Axial thrust bearings are engineered specifically to handle the unique demands of axial loading, ensuring that rotating assemblies maintain precise axial positioning and do not experience unwanted shaft movement under operational stresses. This specialization is critical in high-reliability environments where improper load management can lead to premature wear or catastrophic failure. By selecting the appropriate bearing type for each load direction, designers ensure optimal performance and durability throughout the system.
Load direction dictates contact geometry, identifying where the material must be strongest, and how lubricant is delivered and retained. A plain thrust washer presents its working area as a flat annular face oriented square to the shaft, so that axial force is spread across the whole ring; a radial sleeve presents a cylindrical bore, so that side load is spread around the circumference. Ask either to carry the other’s load, and contact collapses onto a small area, pressure climbs, and the surface fails.
In real machines, these two loads rarely act in isolation; consequently, most industrial bearing applications pair a thrust element with radial supports. The engineer’s task is to route each load to the element built for it: axial thrust to the thrust face, radial load to the journal, so that neither surface is asked to do a job it was not designed to handle. When a thrust bearing is expected to absorb meaningful radial load – or vice versa – that mismatch is usually the root cause of premature wear.
What are the advantages of using thrust bearings?
Used correctly, a thrust bearing delivers benefits that no radial element can provide in axial-load service:
High axial load capacity: a properly sized plain thrust face spreads load across a large annular area, carrying heavy end thrust without concentrating pressure. Heavy-duty thrust bearings are specifically engineered to withstand extreme axial forces encountered in demanding industrial environments such as mining, construction, and material handling. Their robust design, hardened surfaces, and precision-ground finishes enable these bearings to reliably absorb shock loads and sustain long-term performance under the most rigorous duty cycles.
With precise axial location, the bearing fixes the shaft’s position, keeping gears, seals, and couplings aligned under varying loads. This is vital for maintaining assembly integrity, where even minor axial displacement can cause equipment failure or costly downtime.
Reduced wear and stable friction: a controlled sliding film or rolling interface minimizes metal-to-metal contact and the heat that drives surface distress. In heavy-duty thrust bearings, this is achieved through advanced micro-finishing techniques and carefully engineered oil-grooving patterns that optimize lubrication and heat dissipation across the loaded face.
Shock tolerance: plain designs in particular absorb intermittent thrust spikes that would brinell a rolling element. This makes heavy-duty thrust bearings a preferred choice in applications where unpredictable loads or sudden reversals are common, ensuring both reliability and equipment longevity.
Manufacturing precision sets the performance ceiling of all these advantages. Load capacity depends on a face that is genuinely flat and square to ensure uniform pressure; low friction depends on a smooth, consistent finish; and long life depends on the hardness and dimensional stability that result from proper heat treatment and post-hardening grinding. This is where extremely tight tolerances and controlled surface finishes translate directly into reliability rather than remaining abstract specifications.
Equally important is range. Heavy-duty equipment does not standardize on a single size, therefore, a broad span of industrial thrust bearings sizes, from small collars to large-diameter rings, lets an OEM specify the exact bore, face area, and groove pattern its machine requires. That flexibility allows a single supplier to meet heavy-duty thrust bearing needs across an entire product line, rather than forcing the designer to compromise around available stock.
Optimizing size, tolerance, material, and finish at the specification stage is the single most critical decision affecting a component’s lifecycle cost and performance. ; The reasoning behind those specification choices is covered in Selection/Specification.
What are the disadvantages of thrust bearings?
Understanding the limitations of thrust bearings is critical to proper specification. The most important constraints are:
Sensitivity to misalignment. Because load is carried across a flat face or a plane of rolling elements, even small angular error concentrates pressure at one edge, raising local heat and wear. Square, parallel mounting surfaces are essential.
Limited radial load capacity. A thrust bearing is built for axial force; asked to carry meaningful side load, its contact geometry works against it, requiring radial support from a separate element.
Dependence on precise installation and lubrication. Tight running clearances and thin lubricating films leave little margin for assembly error, contamination, or lubricant starvation.
Many of these disadvantages can be mitigated by selecting the appropriate types of thrust bearings for the specific application and by working with a manufacturer capable of producing custom thrust bearings tailored to exact operational requirements. For example, a custom thrust bearing designed and manufactured for printing can address misalignment sensitivity through optimized geometry or improve lubrication management with engineered groove patterns. Matching the right bearing type and customization level to the application’s axial and radial load demands is essential for maximizing performance and service life.
Material selection and disciplined maintenance mitigate, but do not eliminate, most limitations. The choice of base material, hardness, and surface treatment governs resistance to galling, contaminant embedding, and deformation under load and at elevated temperatures. Proper lubrication, clean assembly, and regular inspection extend service life beyond baseline specifications.
Precise specification and sourcing are equally critical. Bearings dimensioned, grooved, and finished for actual duty, and manufactured by a shop capable of holding tight tolerances, prevent most field failures prior to installation. Because these applications often demand highly specific designs, custom print-to-build thrust bearings typically offer superior reliability compared to off-the-shelf components—provided the supplier is fully qualified and aligns with the design intent.
What is an example of a thrust bearing application?
A representative example comes from heavy-duty vehicle OEMs, where custom plain thrust bearings locate rotating members inside large industrial transmissions and pivot assemblies. In these positions, the bearing must withstand substantial, sometimes reversing, axial loads while surviving shock, contamination, and long intervals between services. These conditions punish any part not made precisely.
These thrust bearing applications are characterized by extremely strict engineering requirements. For instance, a typical transmission thrust washer might be held to ±0.0005″ on critical dimensions with a 8 RMS surface finish on the bearing face, so that the lubricating film forms evenly across the whole annulus. Lubrication is managed via machined oil grooves—such as figure-8 and double-8 patterns—that route oil across the loaded face to dissipate heat and flush debris. The groove layout is not decorative; rather, it determines whether the film survives at the inner and outer radii where sliding velocity differs across the face.
Meeting these requirements at high production volumes creates a complex sequencing challenge. Parts are often machined from seamless alloy tubing, turned and grooved on multi-axis equipment, and hardened to develop wear resistance. They are then finished by centerless and internal grinding, as well as face grinding, to restore post-hardening tolerances and finish.
Centerless grinding achieves the required outside diameter and roundness without center holes—ideal for high-volume cylindrical parts—while internal grinding restores bore concentricity relative to the ground OD after hardening-induced distortion. Together, they restore the tight bore, OD, and face relationships the print demands; dimensions turning alone cannot hold once heat treatment introduces distortion. As a result, the finished bearing meets its flatness, size, and micro-finish targets on the surfaces that actually carry load.
Axial loads are unforgiving. The gap between a bearing that lasts and one that fails early comes down to the precision of its faces, grooves, and material; the flatness held in tenths of a thousandth; the finish measured in RMS; and the heat treatment that maintains stable geometry under load. Those details decide service life long before a component reaches the machine.
Unlock the full potential of your heavy-duty applications with industrial thrust bearings engineered for uncompromising performance and longevity. Connect with our team of precision manufacturing experts to discuss your unique requirements and discover how our advanced solutions can optimize your operations. Take the next step toward superior reliability and efficiency—reach out to us today. If a heavy-duty axial-load position on your equipment demands a plain thrust bearing built exactly to print, send your drawing to our estimating team and put those tolerances to work.
